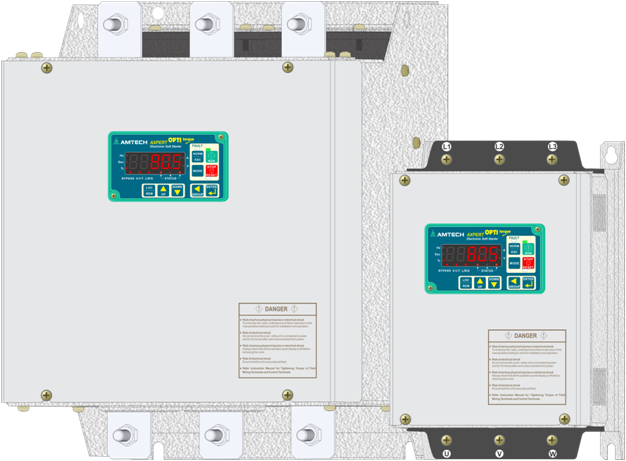

The All New NextGen
Axpert-Opti torque Bypass Series
High Performance Electronic Digital Soft Starter
|
|
Greetings!
Amtech has come up with all new NextGen Axpert-Opti torque Series Soft Starter because your induction motor deserves smooth starting and better protections.
The NextGen Axpert-Opti torque Series Soft Starters are designed, developed and manufactured in India by Indians for the World.
The high performance Soft Starters has many unique functions like advance integrated overload & overcurrent protections, motor PTC, 3-wire or 6-wire motor connections, choice of motor starting & stopping modes, motor control modes and all kind of metering. It is energy efficient design.
Use Axpert-Opti torque Soft Starter and forget your motor starting problems, mechanical wear and tear, breakdown and other worries.
|
|
OVERVIEW AND FEATURES OF SOFT STARTER SERIES
|
|
WIDE VOLTAGE AND POWER RANGE
28...1065 A, 11...1000 kW
400 V Series: 200...480 V, 3-phase, 50/60 Hz
600 V Series: 380...690 V, 3-phase, 50/60 Hz

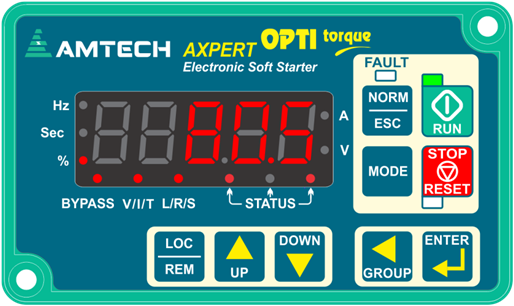

The Axpert-Opti torque series soft starters are high end industrial grade product and comes with LED (or LCD) display with keypad for wide range of parameter monitoring, adjustments and protections.
|
|
|
BYPASS, INSIDE DELTA & INLINE MODE
The Soft Starter can be connected in both inline as well as inside delta configuration. When connected to the inside delta configuration, you can use it to control higher rating motor.
The bypass function is used to save more energy and switch the motor to contactor / relay. The soft starter continues to monitor the motor current and provides all motor protections like unbalance, ground fault, over current, overload protection even in bypass mode.
|
|
OPTIMUM CONTROL & PROTECTION
The high-end digital signal controller offers excellent control. The use of 3-phase control, monitoring the 3-phase current offers range of protections against overload conditions to ground fault conditions.
It comes with range of Configurable I/O, serial communication for remote monitoring, three starting modes, four stopping modes, integrated overload protection, kick start for heavy load conditions.
Built to comply with the global standards like UL 508, IEC 60947-4-2 and CE.
All the printed boards are conformal coated for protection against harsh environments.
|
|
EASY MONITORING

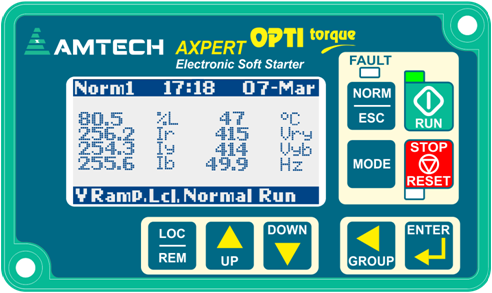

The Graphical display offers excellent monitoring of the operational parameters. The 9-key keypad is useful for easy navigation and parameter setting.
All the metering parameters like 3-phase voltage, 3-phase current, Line frequency, Active / Reactive power, Energy Meter (kWh and MWh), Number of starts per hour, Heatsink temperature in both degree C & F, Run time and Fault history are available on display.
|
|
|
Graphical Display (Optional)
|
|

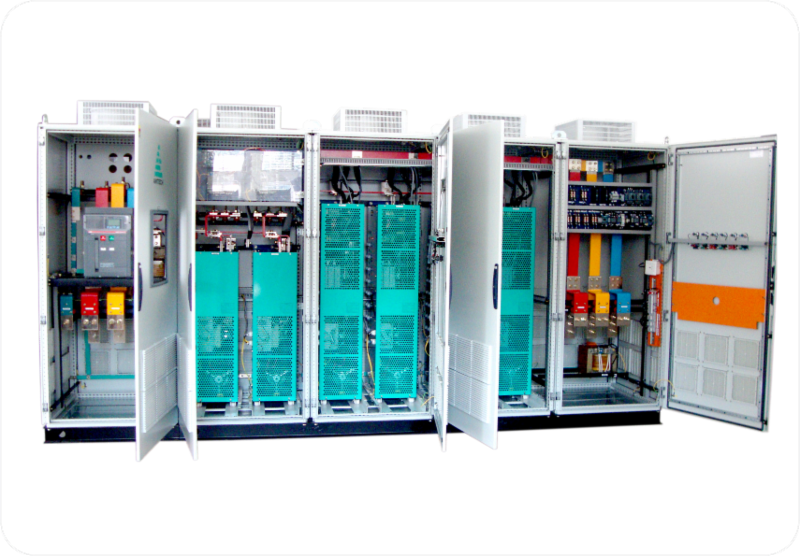

COMPLETE PACKAGE SOLUTIONS
|
|

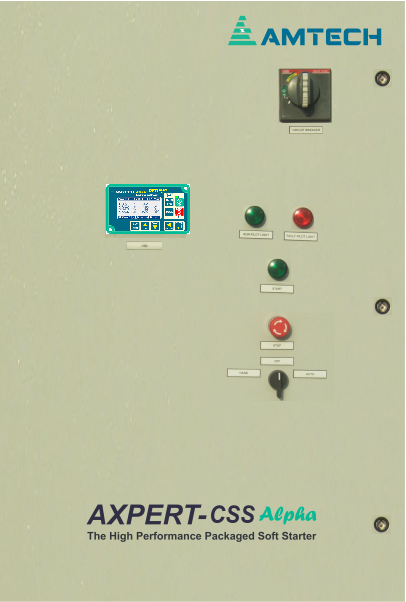

Axpert-CSS Alpha
This is the highest value product for applications where "across-the-line (DOL)" starting capabilities are not required.
An AC-1 "Run-Rated" Bypass contactor is provided standard. Once the soft starter gets the motor “up-to-speed”, the motor is switched over to the bypass contactor and runs “across-the-line.”
The soft starter still monitors full operation of the motor and provides complete diagnostic protection.
|
|
|

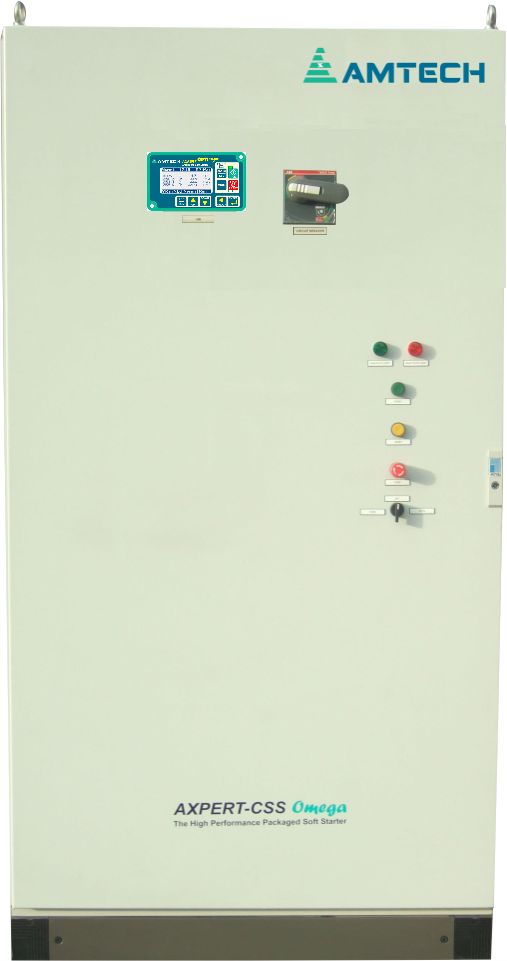

Axpert-CSS Omega
The Omega is the full-featured model that has features like the AC-3 "fully-rated” bypass contactor, external motor overload protection and the change from Soft Starter to "across-the-line (DOL)" operation via selector switch.
A shunt trip breaker is provided for increased system protection. An overload relay is provided for motor protection when using the across-the-line (DOL) mode.
|
|
|

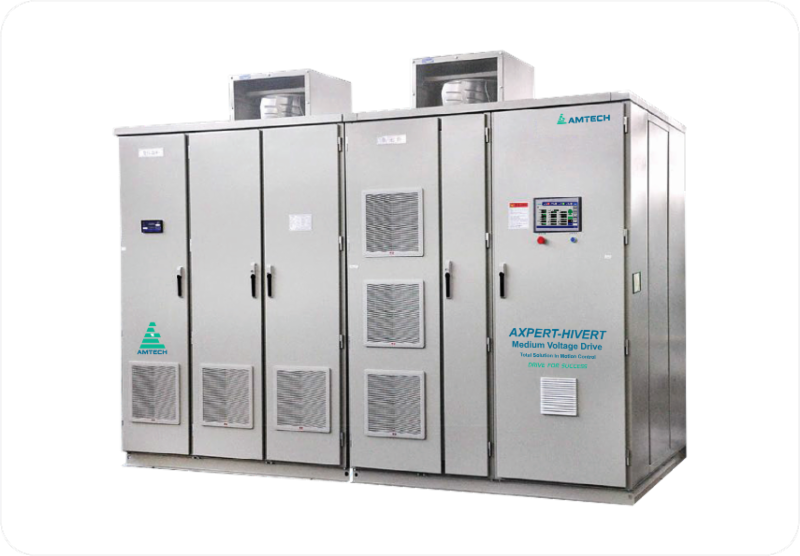

OUR OTHER MOTOR CONTROL OFFERINGS
|
|
