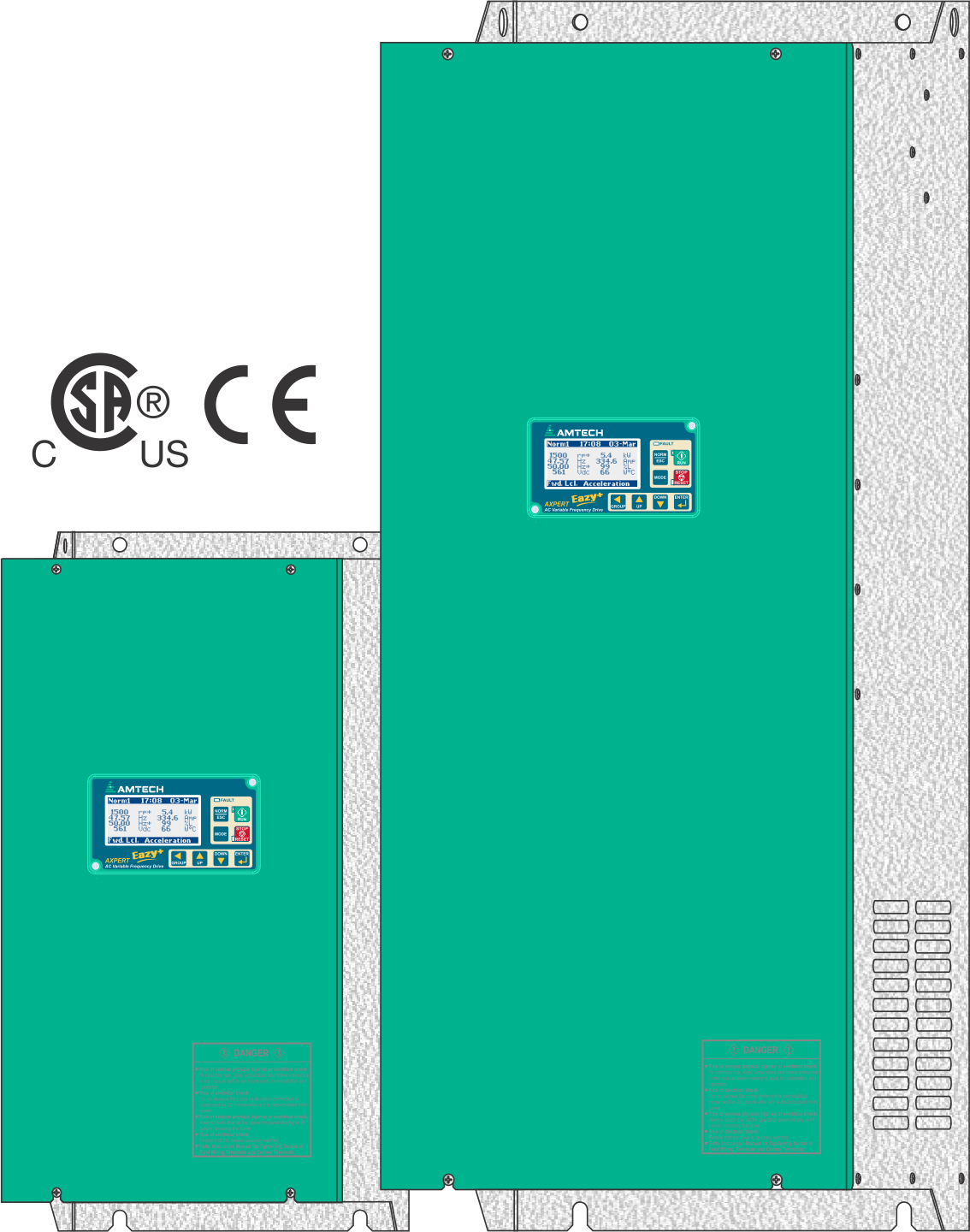

Axpert-Eazy+ Series VFD The Next Generation Industrial Grade High Efficiency VFD for Every Industry Made in India - Made for the World

Greetings! It is now more than two years since we launched our Next Generation Industrial Grade flagship product Axpert-Eazy+ Series Variable Frequency Drive. Thank you for the overwhelming response to the product which is designed, developed and manufactured in India by Indians for the world. We take pride to have customers like you who are vocal for local, promoting Brand India and contributing in the nations development. The VFD is equipped with power packed hardware and innovative software functions. It has many protective and diagnosis functions for smooth operation. It is also meeting the most stringent global safety standards UL 61800-5-1, CSA C22.2 No. 274-17and CE. Have a look at some of the exciting functions that can benefit you the most and explore the Axpert-Eazy+ VFD to see yourself why it is most advanced user friendly VFD. Contact sales@amtechelectronics.com for any of your requirement.

BE VOCAL FOR LOCAL

USER FRIENDLY BY DESIGN

400V Series 380 to 480 V, 0.75 to 2000 kW (1 to 2700 HP) 500V Series 500 to 600 V, 30 to 1800 kW (40 to 2415 HP) 600V Series 601 to 690 V, 37 to 2100 kW (50 to 2815 HP) The new series is designed to meet the ever increasing expectations of our customers; deliver highest performance, protection and energy saving without compromising the user friendliness.

Quad Core Motor Control Digital Signal Controller based control 7th generation highly efficient and reliable IGBT Low loss high ripple current capacitor provides longer life Graphical Display for great comfort and convenience Excellent performance under 50 °C (122 °F) ambient temperature and under poor power supply grid conditions State-of-the-art conformal coated printed wiring boards to meet 3C3 / harsh environmental conditions AluZinc Enclosure for better bonding and EMI/EMC performance

Easy to INSTALL & COMMISSION The New Series VFD is compact and requires less space to install. Well-defined terminations for power and control circuit. All the power terminals are on either left side or bottom side. Commissioning Mode for easy commissioning. Debug Mode for the logic verification without actually rotating the motor.

Easy to PROGRAM Shorter programming time Application Macro sets the required parameters as per the application and rating. Functional Macros sets the required parameters and I/O as per the function usage. Identify the changed parameters at a glance with Default differ function and change the parameter from the same menu.

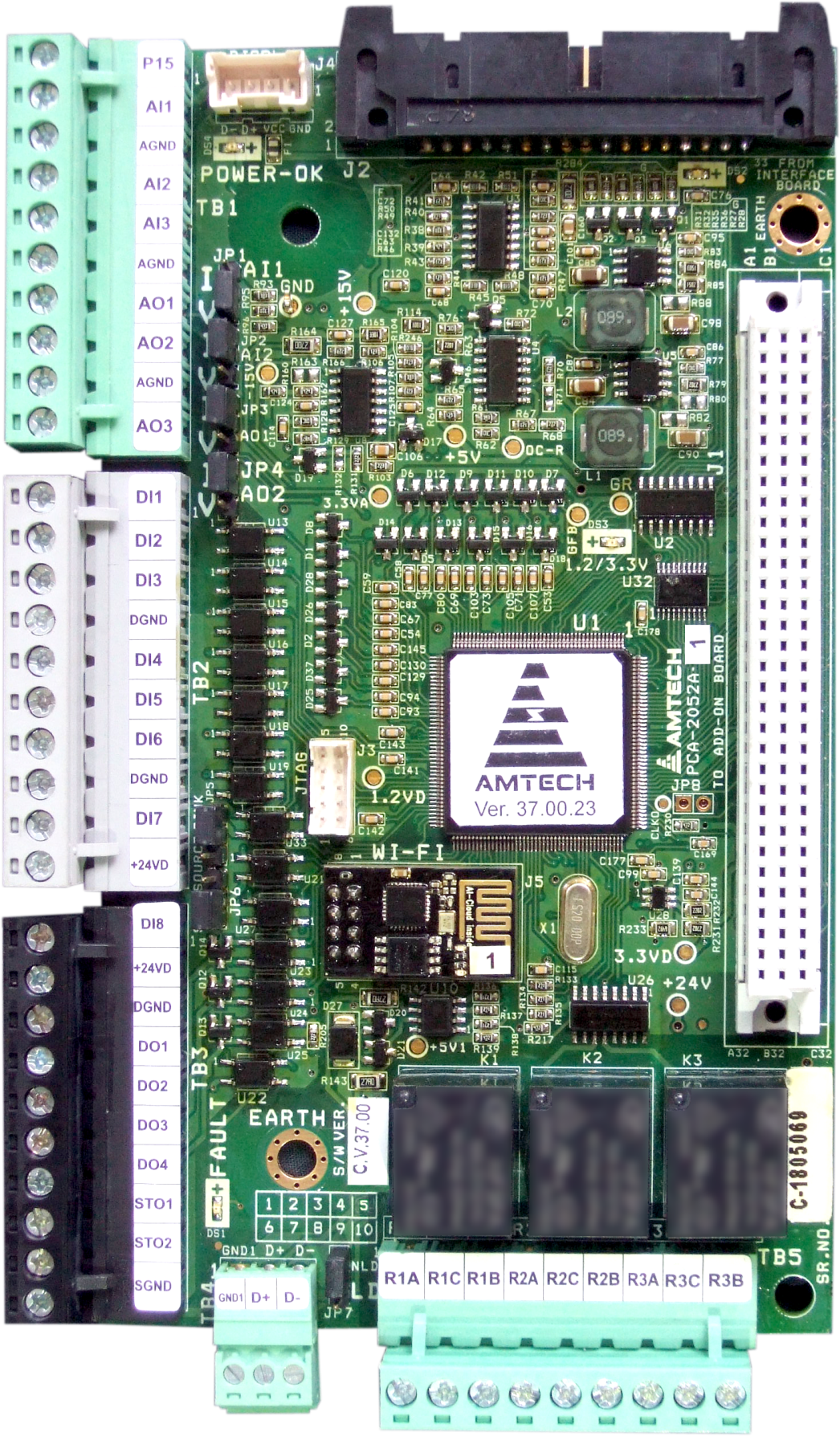

Easy to CONTROL Range of Fully Configurable I/O 8 Digital Inputs, +24V operated sink/source and normally open/close selectable, Dl8 is configurable as Pulse Input 4 Digital Outputs, Up to +30V operated and normally open/close selectable, DO4 is configurable as Pulse Output 3 Relays, normally open/close selectable 3 Analog Inputs (two configurable as voltage or current input, one as +/-10 V input) 3 Analog Outputs (two configurable as voltage or current output, one as +/-10 V output) 2 fixed digital inputs dedicated for (STO), the digital output can be programmed for the STO feedback 32 Configurable Serial Parameters helps to read 24 parameters in a one go PID, Multi-pump, Ring Spinning Frame, Pattern Run software functions

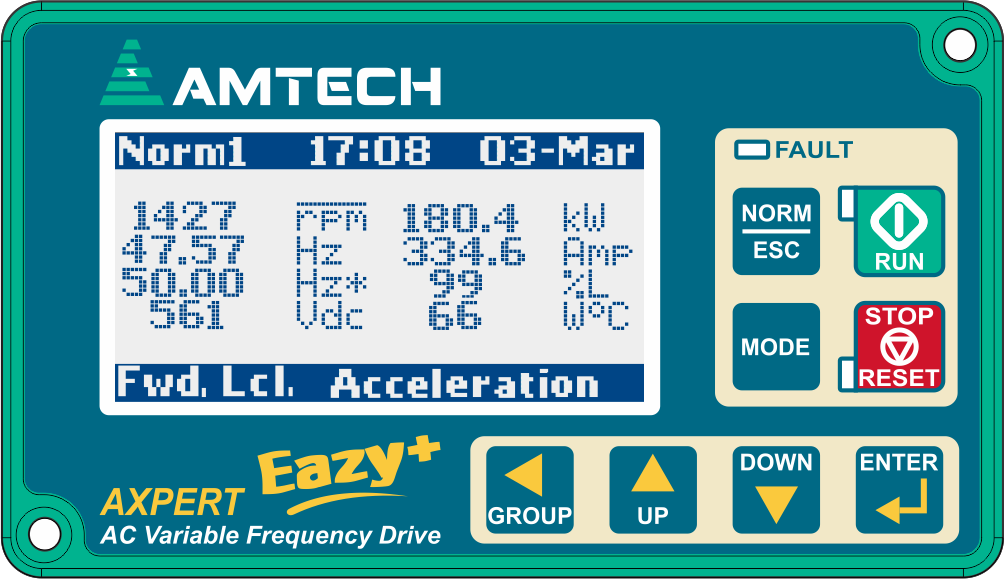

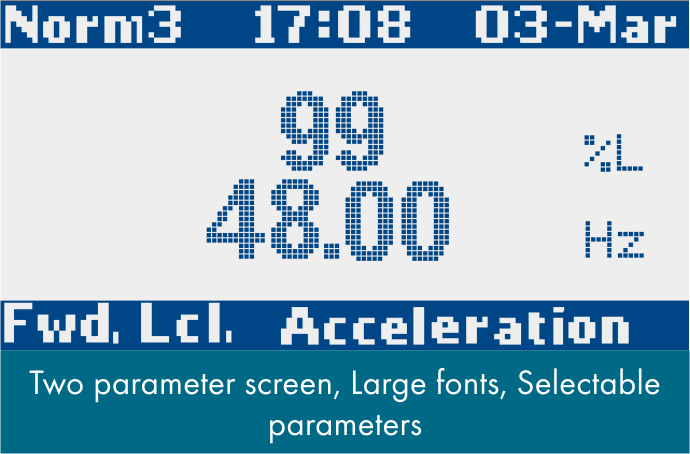

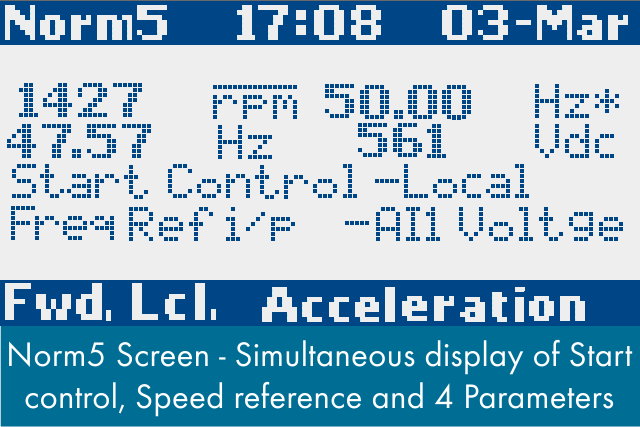

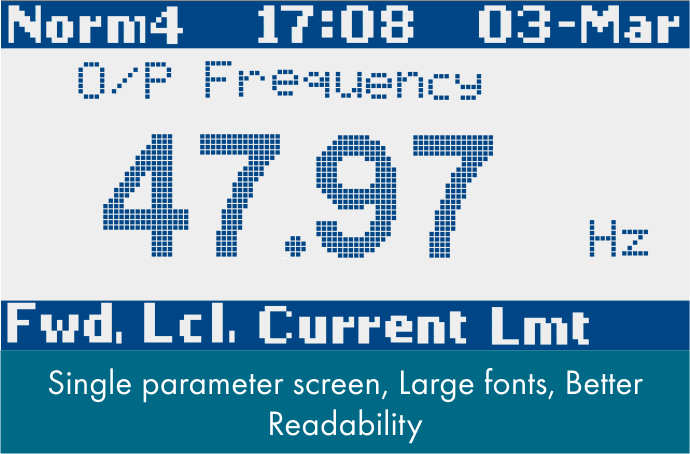

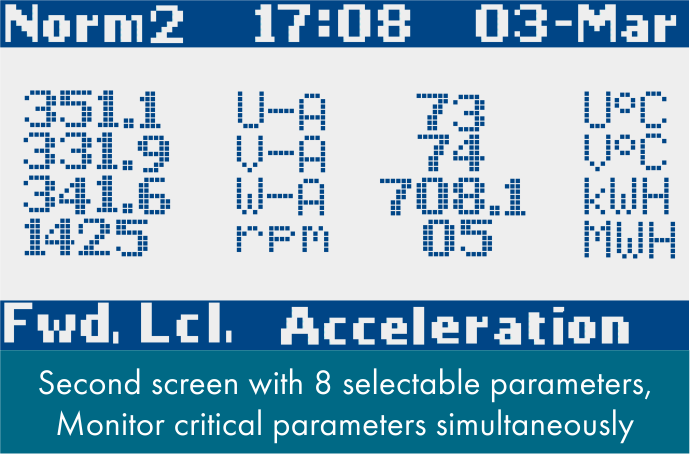

Easy to MONITOR The new graphical display with white back light and Real Time Clock provides great comfort and convenience to our user in monitoring and setting the parameters. The graphical display has 5 normal screens with selectable parameters. User can monitor 16 parameters of his/her choice simultaneously on a single screen! You can also set automatic rotation of all 5 normal screens with adjustable rotation time.

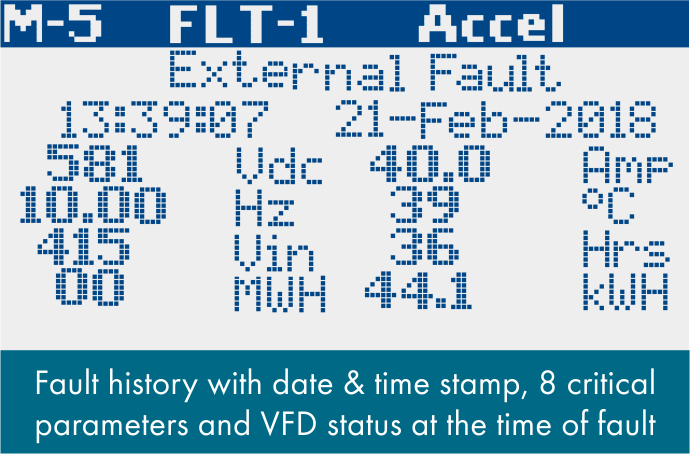

Easy to DIAGNOSE Fault history saves last 20 faults with date/time stamp and 8 important operation parameters Load Analyzer1 shows user selected parameter Vs time profile Load Analyzer2 shows load current Vs time profile for entire service life Peak Load monitoring with date/time stamp and other parameters

Easy to ECONOMIZE IE2 Compliant VFD Built-in PID, PLC & application specific software reduces the peripheral cost. Built-in Energy Saving Calculator High-Efficiency operation mode Multi-pump control function Auxiliary Drive control function

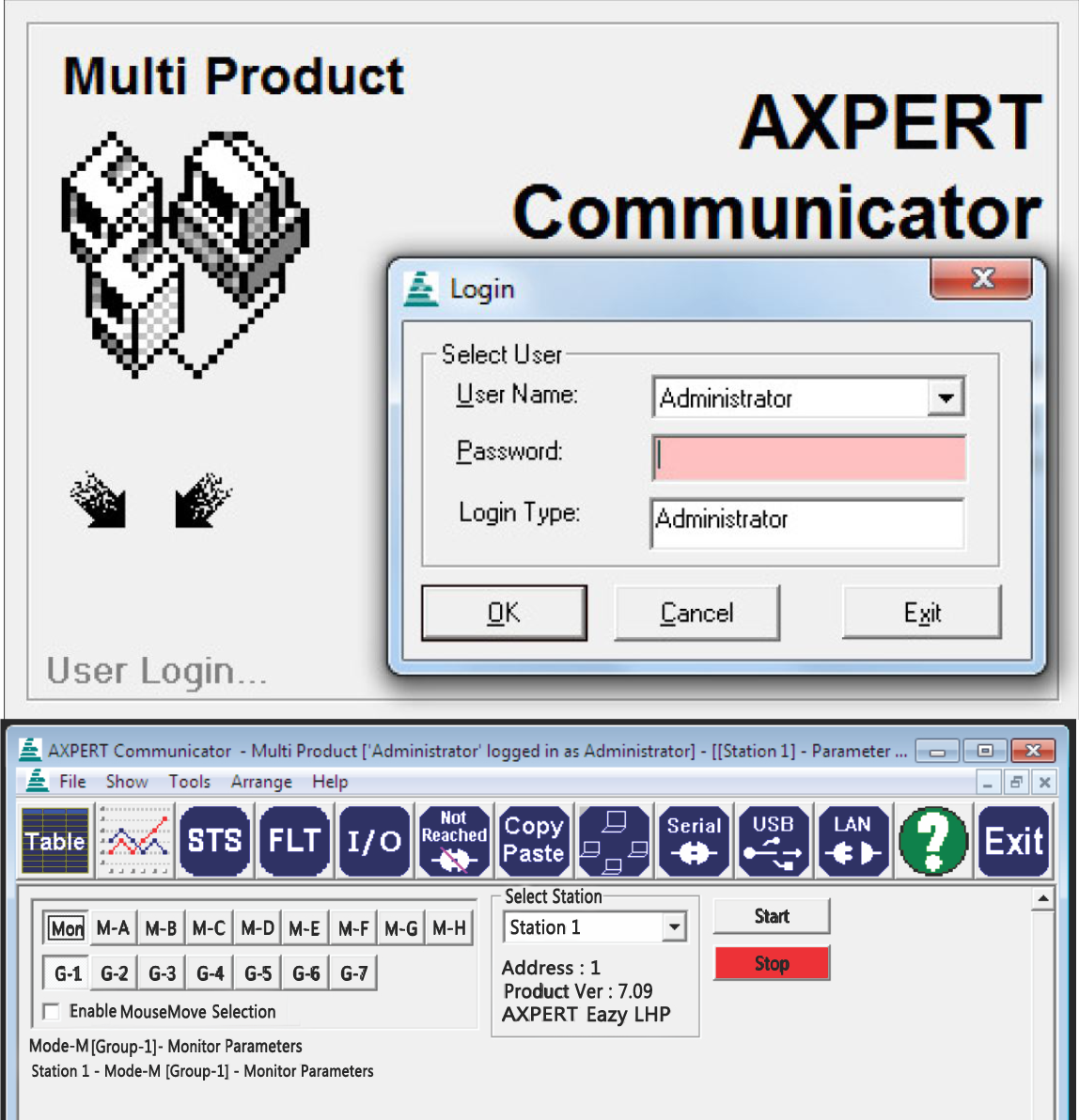

Easy to CONNECT RS-485 Modbus Protocol, Wi-Fi as standard Axpert-Communicator Drive Support Software Powerful monitoring & control PC software for controlling maximum drives at a time. All parameter monitoring & control / Bargraphs / Trend plots / Alarm view Mobile Application The mobile application allows you to monitor and set all the parameters from your android mobile. Now control is in your hand.

VFD FOR DEMANDING APPLICATIONS

Axpert-Eazy+ Series VFD is designed to meet every application in majority of the industries like, Metal - Rolling Mills, Roller Table, Wire / Sheet Drawing Machine, Cranes / Stacker - Reclaimer, Fume / Dust Exhaust Fan / Blower, Lifter / Pusher / Charging Car Cement - Main Kiln Drive, Pre-heater Fan, Coal Mill, Raw Mill, Circulating Air Fan, Cooler Fans, Separators, Grinder / Crusher, Cranes / Stacker - Reclaimer, Conveyor / Feeder Power plant - ID / FD / PA / SA Fan, BF Pump, Cooling Tower Fan / Pump, Wagon Tippler, Stacker / Reclaimer Oil & Gas - Drilling Rig, Mud / Submersible / Progressive Cavity Pump, GCS Heater, Artificial Lift (Pump Jack), Compressor / Fracking Sugar - Sugar Mill Drive Automation, Sugar Centrifuge Automation, Cane unloader hoist drive, Feeder table automation, Cane carrier Chemical - Centrifuge, Agitator / Mixer / Fermentor, Dozing Ammonia Pumps, Process & Supply Pumps, Chiller / Lube Compressors Paper - Sectional Automation, Line Shaft Drives, Pulper / Refiner, Vacuum Pumps, Winder / Rewinder Water & Wastewater - Raw Water Supply Pumps, ETP Pumps, DM Water Pumps, Sewage Supply Pumps, Decanter Centrifuge

Amtech Advantage

Innovative solutions designed, developed and manufactured by Indians, supporting "Made In India" Manufacturing excellence, fast turn around and best uptime provider More than 30 years of experience, highly qualified and experience professionals Prompt & Effective Customer services, network across the country Renowned consultant approval in various industries Wide installation base covering major industries and applications, more than 100,000 installations Quality system certified as per ISO 9001:2015 standard Strong understanding of the Indian and global market Core competence in Power Electronics and customized solutions Competitive pricing
